USS Eichenberger(DE-202) is shown from the starboard on January 18, 1944 outside of Charleston wearing camouflage 31/16D using dull black, ocean gray and haze gray. The ocean gray and haze gray are washed out in this exposure. Photo source: NARA BS 58083.

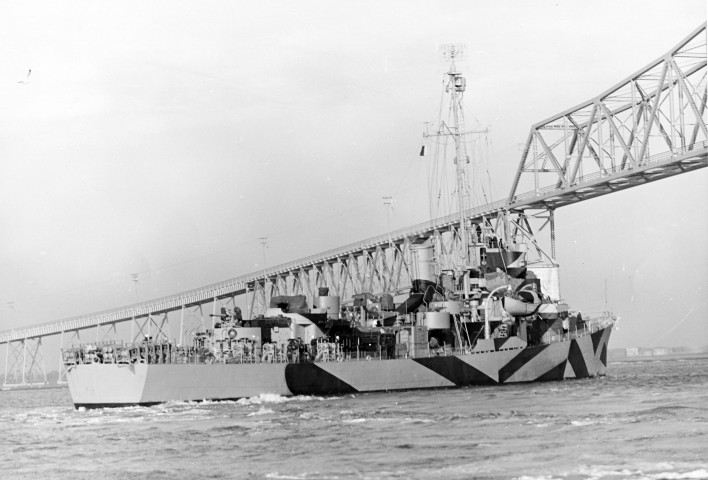

Eichenberger is seen again on January 18, 1944 from the port wearing 31/16D camouflage. The darkest color definitely appears light. The two lighter colors appear almost the same shade possibly because of the filter used or the exposure. Compare the large panel on the bow to the drawing; this caused the camouflage section to comment to the shipyard that the pattern was not done properly. Photo source: NARA BS 58088.

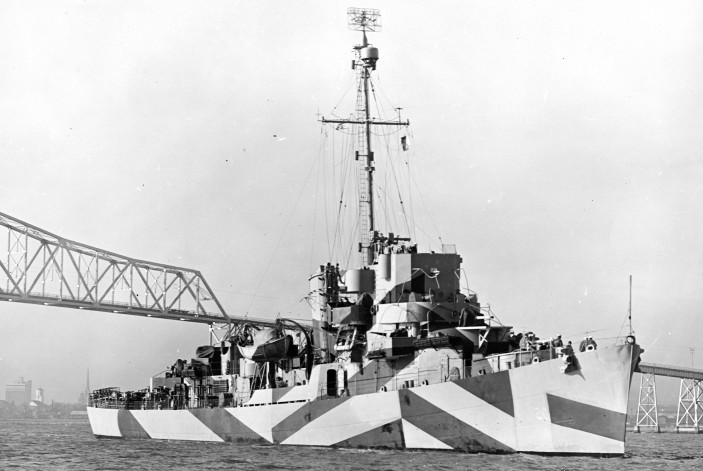

Eichenbergeris seen again from the starboard bow on January 18, 1944 wearing camouflage design 16D at Charleston, S.C. The darkest hull color shows much lighter except where it is wet. Photo source: NARA BS 58084.
Eichenbergeris seen from the starboard quarter on January 18, 1944 wearing camouflage 31/16D. The darkest color looks a little darker from this angle, but the medium color still appears light. Note Eichenberger has a quad 1.1-inch AA aft. Photo source: NARA BS 58085.
Eichenbergeris seen again from the starboard quarter on January 18, 1944 wearing camouflage 31/16D in Charleston. The deck pattern is visible from this angle. Photo source: NARA BS 58090.
