U.S. Navy Ships in WWII Dazzle Camouflage 1944-1945
Auxiliary Ships
Auxiliaries I |
View by Design Number |
|
||||
| Design Number | Silhouette | Ships Wearing Design | ||
|---|---|---|---|---|
for AG-30 |
Measure 32
| |||
Drawing

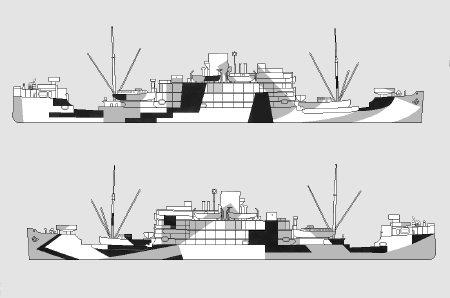

The drawing for Measure 32 Design 7T for the USS Bowditch (AG-30) auxilillary ship later (AGS-4) survey ship dated probably late 1943. This drawing specifies Measure 32 vertical colors: light gray (5-L), ocean gray (5-O), and dull black (BK) with the horizontal color of deck blue (20-B).
This is the only drawing for Design 7T that has yet been found.
Original drawing source: NARA 80-G-162016 and 80-G-162017.
