U.S. Navy Ships in WWII Dazzle Camouflage 1944-1945

Aircraft Carriers

View by Design Number

Escort Carriers

 View by Design Number

for CVE-1

Design 9A

for CVE-1
Design Number Silhouette Ships Wearing Design
for CVE-1
Measure 32
Long Island (CVE-1)
Drawing

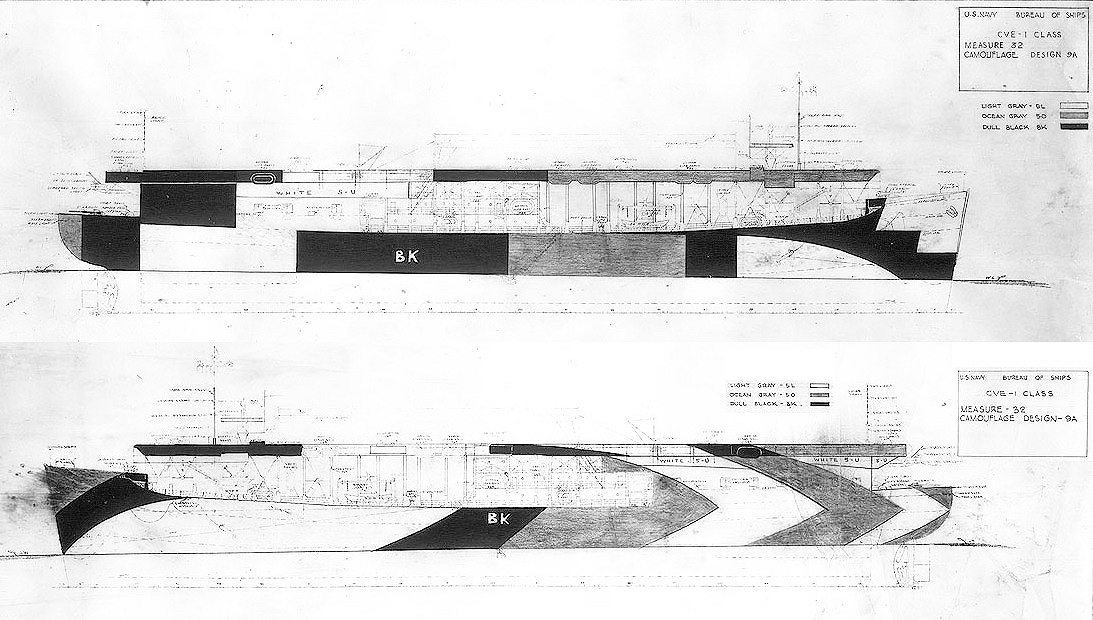

This is the drawing for Measure 32 Design 9A for the class escort carrier USS Long Island dated December 24, 1943. The vertical colors were specified to be dull black (BK), ocean gray (5-O) and light gray (5-L) with some panels of white (5-U) for countershading. The horizontal color was not specified, but was probably deck blue (20-B).

There has been no other Design 9A drawing found.

Original drawing source: NARA 80-G-170027 and 80-G-170032.
