U.S. Navy Ships in WWII Dazzle Camouflage 1944-1945
Amphibious Ships
Amphibious II |
View by Design Number |
|
||||||||
| Design Number | Silhouette | Ships Wearing Design | ||||||
|---|---|---|---|---|---|---|---|---|
for LSV-1 |
Measure 31
| |||||||
Drawing

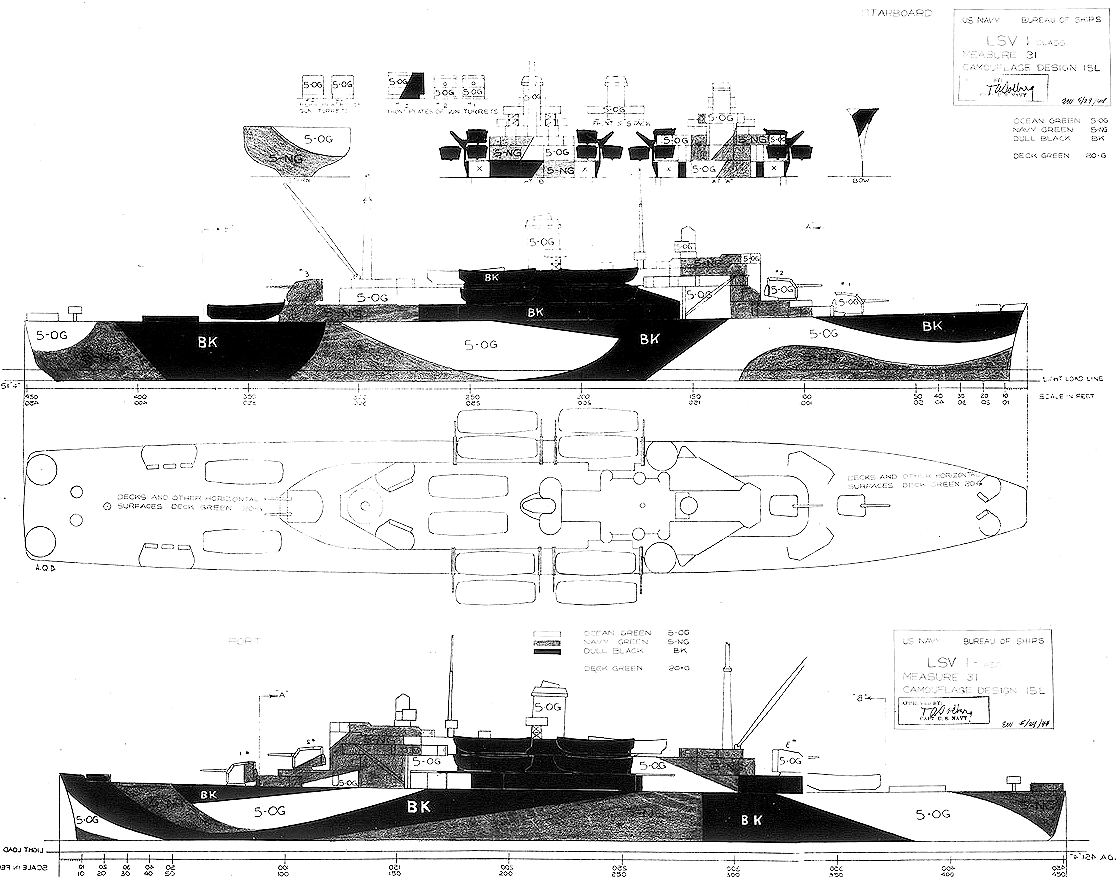

The drawing for Measure 31 Design 15L for LSV-1 class of landing ships vehicle dated May 29, 1944. The vertical colors were greens: dull black (BK), navy green (5-NG) and ocean green (5-OG), with deck green (20-G) on horizontal surfaces.

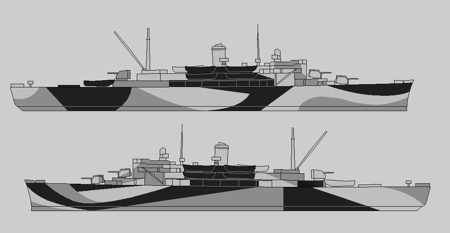

See Design 31/15L silhouette in color.
This is the only drawing of Design 15L that has yet been found.
Original drawing source: NARA 80-G-172983 and 80-G-172984.
