U.S. Navy Ships in WWII Dazzle Camouflage 1944-1945
Amphibious Ships
Amphibious II |
View by Design Number |
|
|||||||||||
| Design Number | Silhouette | Ships Wearing Design | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
for LST-1 |
Measure 31
| ||||||||||
Drawing

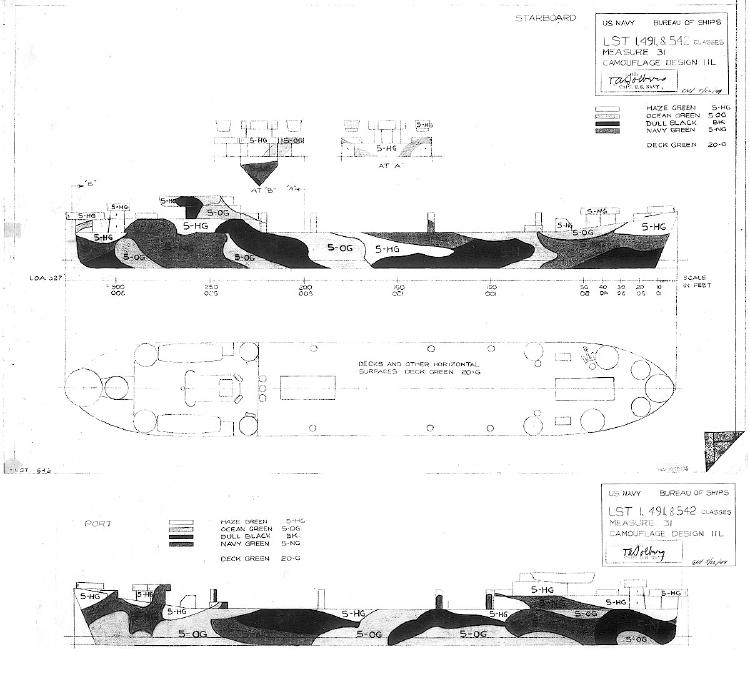

The drawing for Measure 31 Design 11L for the LST-1 class tank landing ships and similar ships dated May 22, 1944. The specified vertical colors were dull black (BK), navy green (5-NG), ocean green (5-OG) and haze green (5-HG) with deck green (20-G) on horizontal surfaces. Note, this drawing had two waterlines: a load line and a light load line.

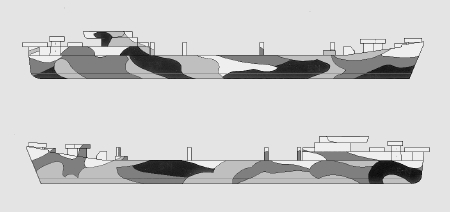

See Design 31/11L silhouette in color.
This is the only drawing for Design 11L yet found.
Original drawing source: NARA 80-G-172985 and 80-G-172986.
