U.S. Navy Ships in WWII Dazzle Camouflage 1944-1945

Amphibious Ships

View by Design Number

Amphibious II

 View by Design Number

for LSM-1

Design 10L

for LSM-1
Design Number Silhouette Ships Wearing Design
for LSM-1
Measure 31
LSM-19 (LSM-19)LSM-23 (LSM-23)
LSM-24 (LSM-24)LSM-35 (LSM-35)
LSM-42 (LSM-42)LSM-43 (LSM-43)
LSM-44 (LSM-44)LSM-48 (LSM-48)
LSM-56 (LSM-56)LSM-59 (LSM-59)
LSM-80 (LSM-80)LSM-100 (LSM-100)
LSM-156 (LSM-156)LSM-157 (LSM-157)
LSM-201 (LSM-201)LSM-205 (LSM-205)
LSM-210 (LSM-210)LSM-233 (LSM-233)
LSM-237 (LSM-237)LSM-258 (LSM-258)
LSM-268 (LSM-268)LSM-269 (LSM-269)
LSM-270 (LSM-270)LSM-271 (LSM-271)
LSM-290 (LSM-290)LSM-311 (LSM-311)
LSM-330 (LSM-330)LSM-331 (LSM-331)
LSM-332 (LSM-332)LSM-333 (LSM-333)
LSM-334 (LSM-334)LSM-335 (LSM-335)
LSM-336 (LSM-336)LSM-337 (LSM-337)
LSM(R)-188 (LSM(R)-188)LSM(R)-190 (LSM(R)-190)
LSM(R)-194 (LSM(R)-194)LSM(R)-196 (LSM(R)-196)
LSM(R)-197 (LSM(R)-197)LSM(R)-198 (LSM(R)-198)
Drawing

33/10L

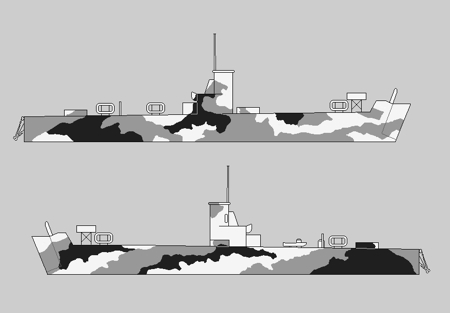

  The drawing for Measure 31 Design 10L for LSM-1 and similar ships dated March 28, 1944.  The specified vertical colors were dull black (BK), navy green (5-NG) and ocean green (5-OG), with deck green (20-G), black and ocean green paint on horizontal surfaces. Most LSM's were painted in a version of this Design, many using sprayed and feathered edges.

See Design 10L silhouette in color or directions for teathering edges.

  This is the only drawing of Design 10L that has yet been found.

  Original drawing source: NARA 80-G-176521 and 80-G-176522.
