U.S. Navy Ships in WWII Dazzle Camouflage 1944-1945

Auxiliary Ships

View by Design Number

Auxiliaries II

View by Design Number

for IX-110

Design 9Ax

for IX-110

Design Number Silhouette Ships Wearing Design
for IX-110
Measure 31
Ocelot (IX-110)
Drawing

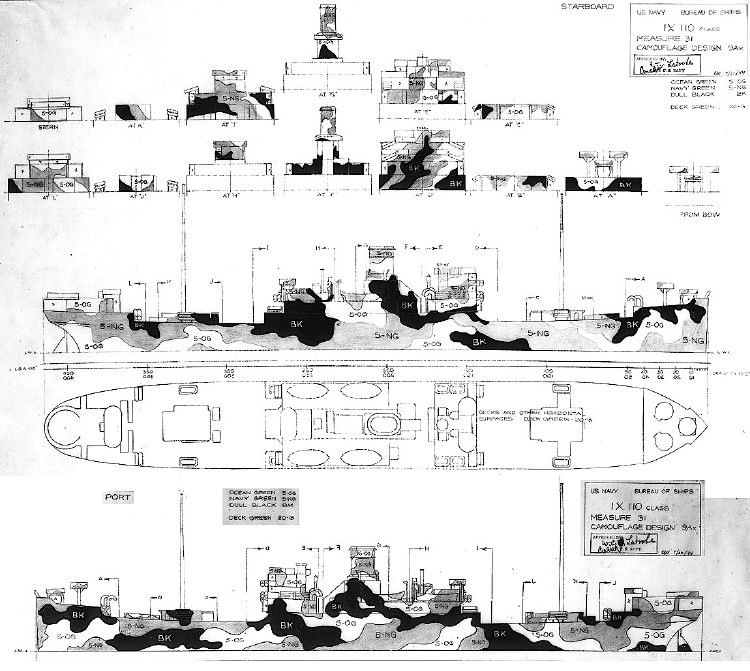

The drawing for Measure 31 Design 9Ax for the unclassified vessal USS Ocelot (IX-110) dated April 20, 1944. This drawing specifies vertical colors in the green range of Measure 31: ocean green (5-OG), navy green (5-NG), and dull black (BK) with the horizontal color of deck green (20-G).

This is the only drawing for Design 9Ax that has yet been found.

Original drawing source: NARA 80-G-172898 and 80-G-172899.
