U.S. Navy Ships in WWII Dazzle Camouflage 1944-1945

Auxiliary Ships

View by Design Number

Auxiliaries II

View by Design Number

for LST-1

Design 8L

for LST-1

Design Number Silhouette Ships Wearing Design
for LST-1
Measure 31
Orestes (AGP-10)Midas (ARB-5)
Pandemus (ARL-18)Romulus (ARL-22)
Sphinx (ARL-24)Stentor (ARL-26)
Askari (ARL-30)Krishna (ARL-38)
LST-428 (LST-428)LST-565 (LST-565)
LST-610 (LST-610)LST-673 (LST-673)
LST-909 (LST-909)LST-990 (LST-990)
LST-1004 (LST-1004)
Drawing

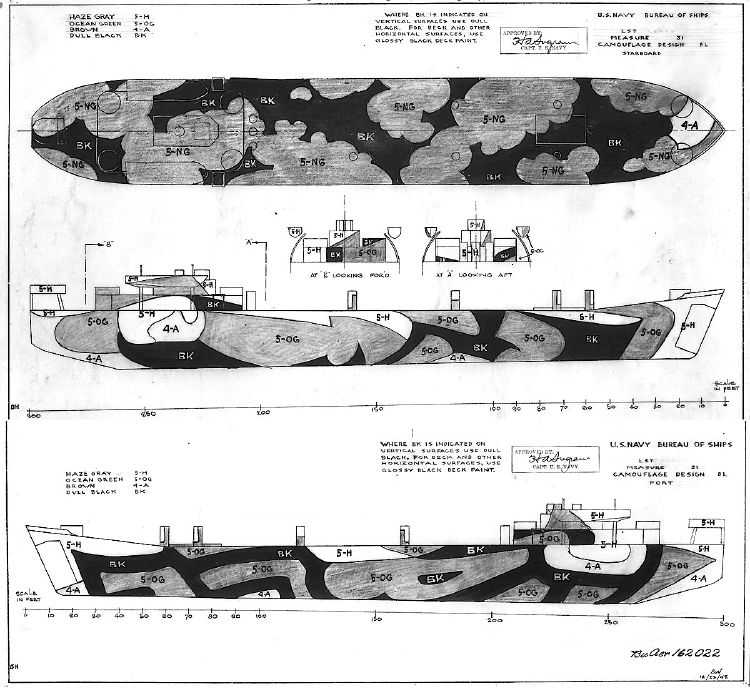

The drawing for Measure 31 Design 8L for LST and similar ships dated December 22, 1943. The specified vertical colors were dull black (BK), ocean green (5-OG), brown (4-A) and haze gray (5-H) with navy green (5-NG) and glossy black deck paint on horizontal surfaces.

See Design 8L silhouette in color

The first drawings of Design 8L was for LSTs on December 22, 1943, as above. Then drawings for Design 8L for the LCI(L)-351 class were drawn using Measure 31 and Measure 33 colors on December 31, 1943.

Original drawing source: NARA 80-G-162022 and 80-G-162023.
