U.S. Navy Ships in WWII Dazzle Camouflage 1944-1945
Auxiliary Ships
Auxiliaries I |
View by Design Number |
|
|||||||||||
| Design Number | Silhouette | Ships Wearing Design | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
for AO-22 |
Measure 32
| ||||||||||
Drawing

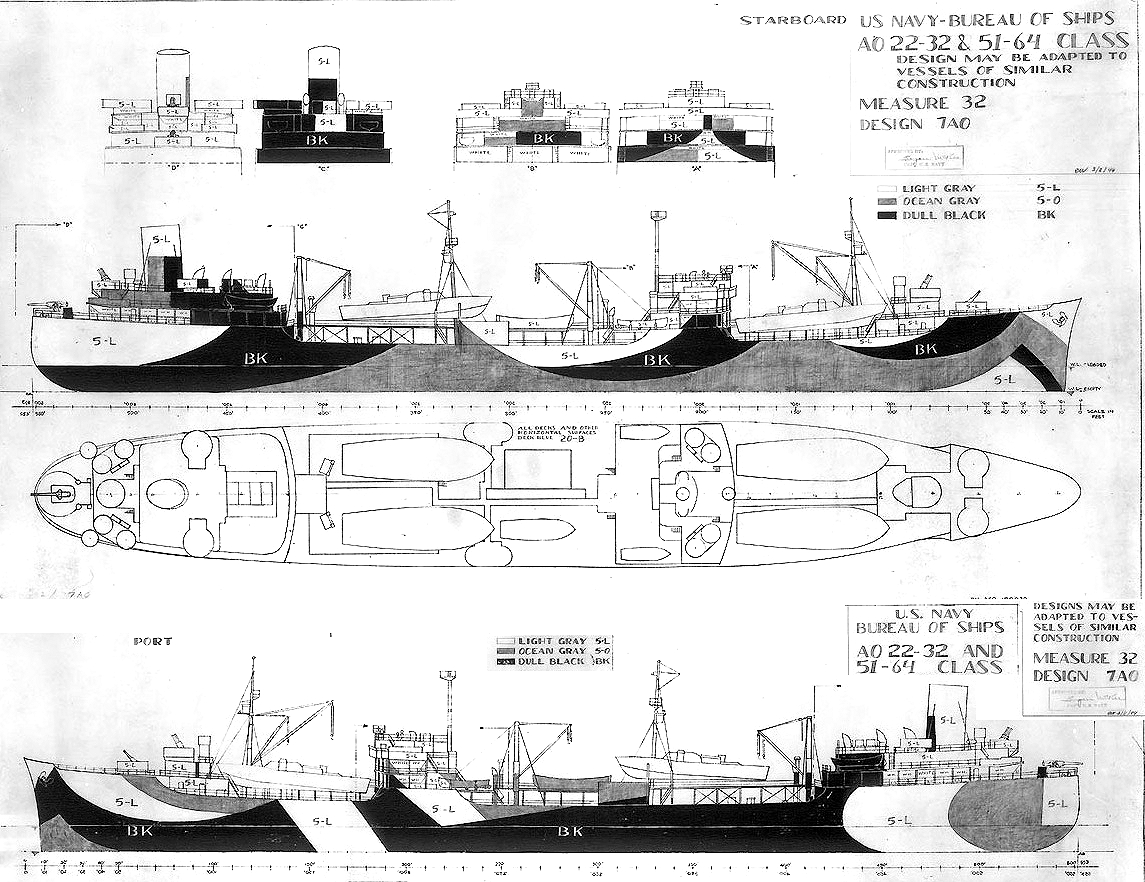

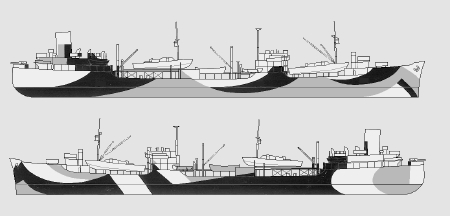

The pair of drawings for Design 7AO for the Cimarron and Ashtabula classes of fleet oilers of the T3 type maritime hulls. This drawing for Design 7AO used Measure 32 colors: dull black (BK), ocean gray (5-O) and light gray (5-L) on vertical sufaces with deck blue (20-B) on horizontal surfaces. The date of this drawing was March 1, 1944, and shows two waterlines.
This is only version of Design 7AO yet found.
Original drawing source: NARA 80-G-170039 and 80-G--170040.
