for AGC-4

Design 18Ax

for AGC-4

Design Number Silhouette Ships Wearing Design
for AGC-4
Measure 31a
Ancon (AGC-4)
Drawing

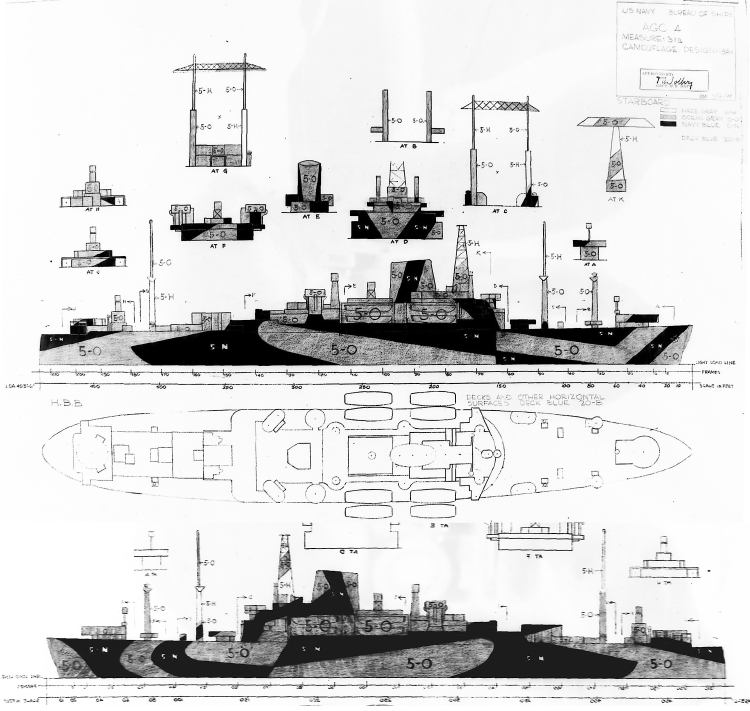

This is the drawing for Measure 31a Design 18Ax for the amphibious force command ship USS Ancon (AGC-4) dated November 16, 1944. The Measure 31a vertical colors were navy blue (5-N), ocean gray (5-O) and some panels of haze gray (5-H) with deck blue (20-B) for the horizontal color.

The first Design 18Ax drawing was for the Appalachian class amphibious force command ships on November 8, 1944. Design 18Ax was also drawn as above for the USS Ancon (AGC-4) amphibious force command ship on November 18, 1944.

Original drawing source: NARA 19-N-100068 and 19-N-100069.
