U.S. Navy Ships in WWII Dazzle Camouflage 1944-1945
Auxiliary Ships
Transports |
View by Design Number |
|
|||||||||

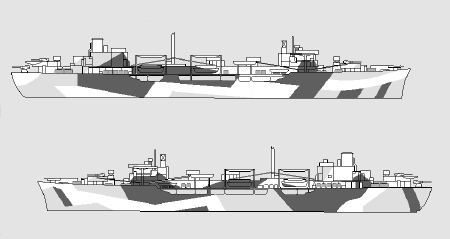

| Design Number | Silhouette | Ships Wearing Design | |||||||
|---|---|---|---|---|---|---|---|---|---|
for AP-130 |
Measure 33
| ||||||||
Drawing

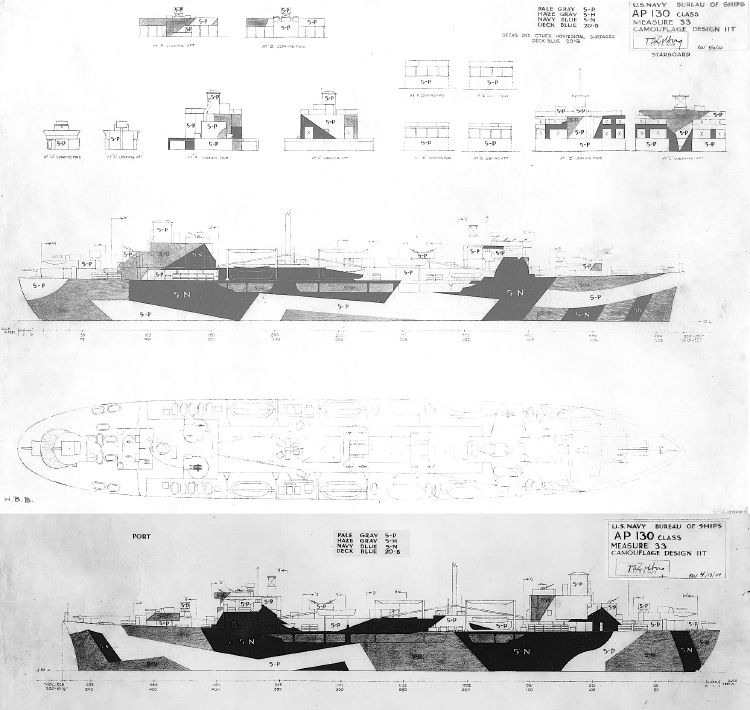

The drawing for Measure 33 Design 11T for the General G. O. Squier class transports using the (C4-S-A1) maritime hull dated April 13, 1944. This drawing specified Measure 33 vertical colors of pale gray (5-P), haze gray (5-H), and navy blue (5-N) with the horizontal color of deck blue (20-B).
This is the only drawing for Design 11T that has yet been found.
Original drawing source: NARA 80-G-173482 and 80-G-173483.
