U.S. Navy Ships in WWII Dazzle Camouflage 1944-1945
Destroyer Escorts
Rudderow |
View by Design Number |
|
||||

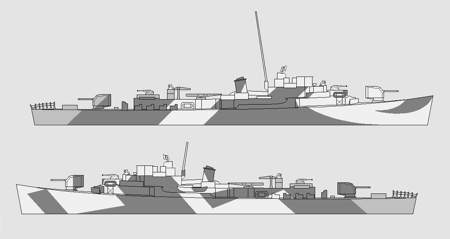

| Design Number | Silhouette | Ships Wearing Design | ||
|---|---|---|---|---|
for DE-339 |
Measure 33a
| |||
Drawing

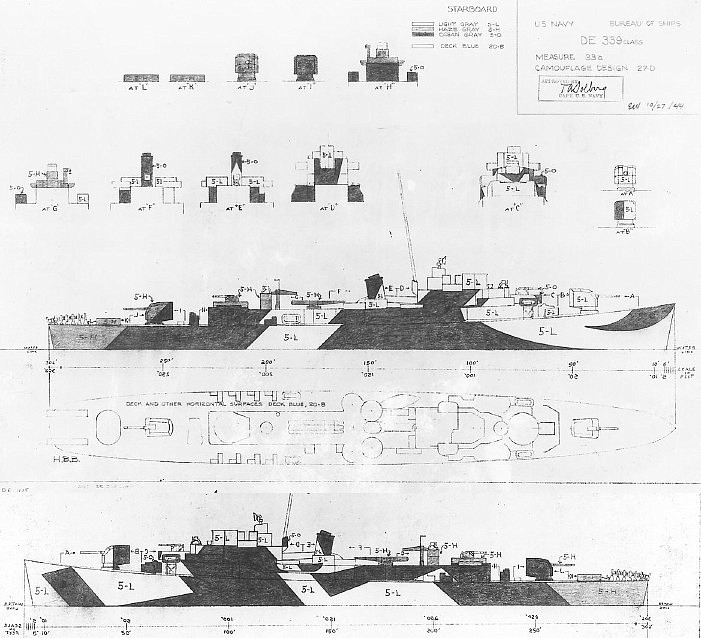

This is a composite of the drawing for Design 27D for the John C. Butler class destroyer escorts in a 3-color Measure 33a, originally produced October 27, 1944. The vertical colors were: ocean gray (5-O), haze gray (5-H) and light gray (5-L).
Original drawing sources: NARA 80-G-104893 and 80-G-104894.
