U.S. Navy Ships in WWII Dazzle Camouflage 1944-1945

Aircraft Carriers

View by Design Number

Escort Carriers

View by Design Number

for CVE-55

Design 14A

for CVE-55

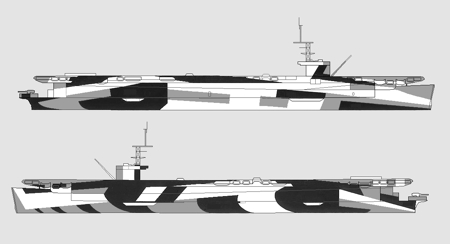

Design Number Silhouette Ships Wearing Design
for CVE-55
Measure 33
Natoma Bay (CVE-62)Savo Island (CVE-78)
Saginaw Bay (CVE-82)Attu (CVE-102)
Munda (CVE-104)
Drawing

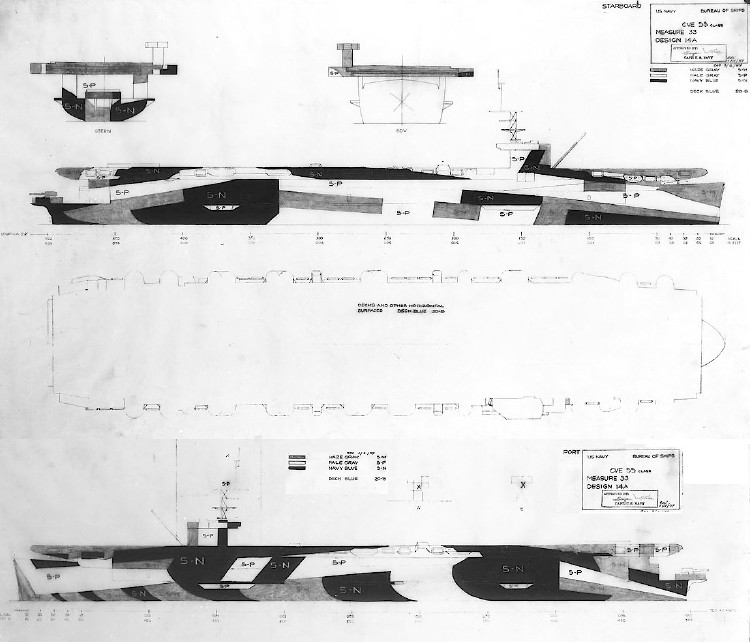

The drawings for Measure 33 Design 14A for the Casablanca class escort carriers issued March 2, 1944. The vertical colors were listed as navy blue (5-N), haze gray (5-H) and pale gray (5-P) with deck blue (20-B) on the horizontal surfaces . The drawing had the bow view crossed out.

There has been only one drawing for Design 14A found.

Original drawing source: NARA 80-G-109639 and 80-G-109640.
