Measure 31
|

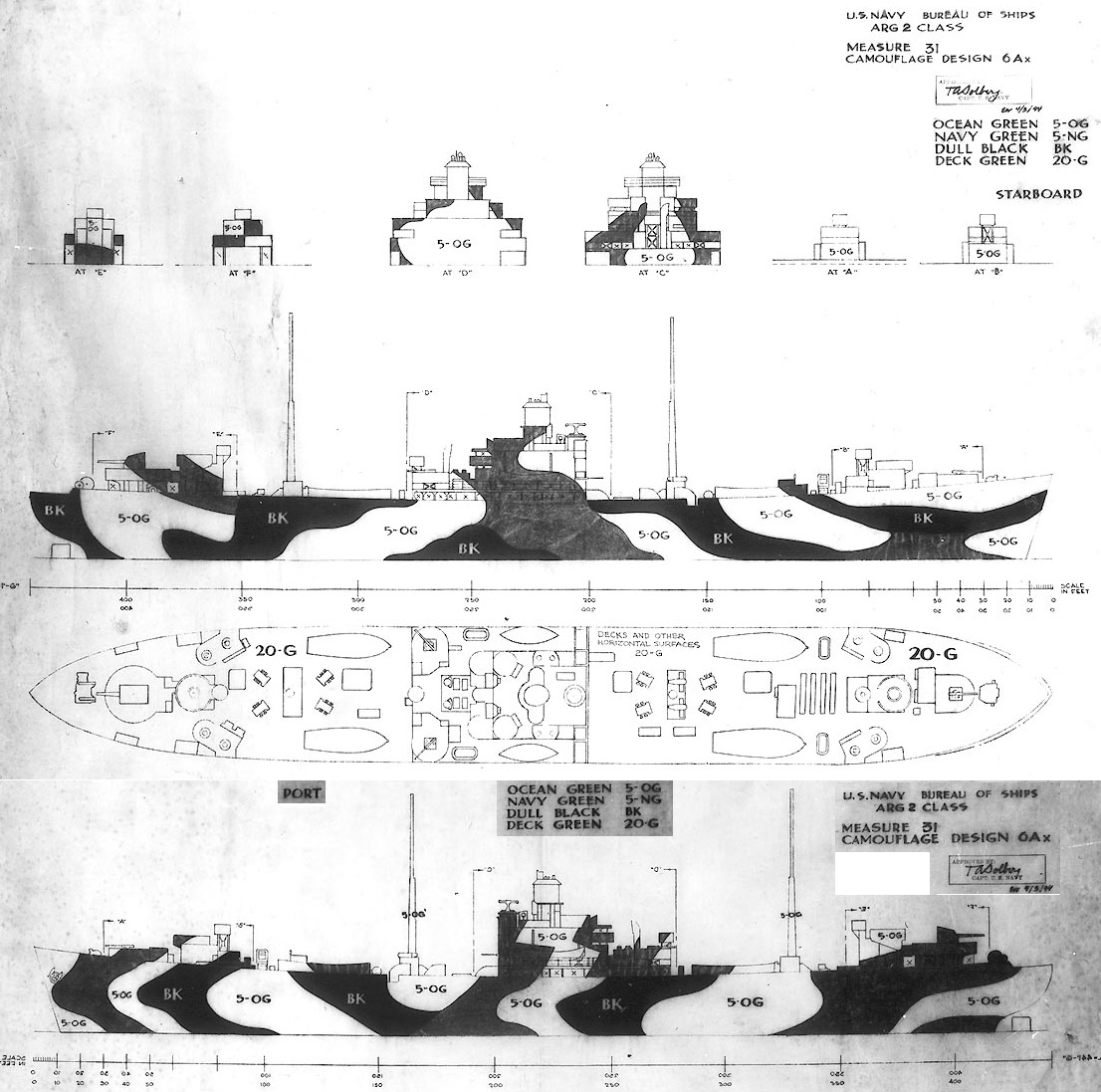

The drawing for Design 31/6Ax for the USS Luzon (ARG-2) class of internal combustion engine repair ships dated April 3, 1944. This drawing specifies three vertical colors in the Measure 31 green range: ocean green (5-OG), navy green (5-NG) and dull black (BK). The horizontal pattern color is deck green (20-G).
This is the only version of Design 6Ax that has been found.
Original drawing source: NARA 80-G-173494 and 80-G-173495.
