U.S. Navy Ships in WWII Dazzle Camouflage 1944-1945

Auxiliary Ships

View by Design Number

Auxiliaries II

View by Design Number

for AS-13

Design 10Ax

for AS-13

Design Number Silhouette Ships Wearing Design
for AS-13
Measure 32
Griffin (AS-13)Pelias (AS-14)
Drawing

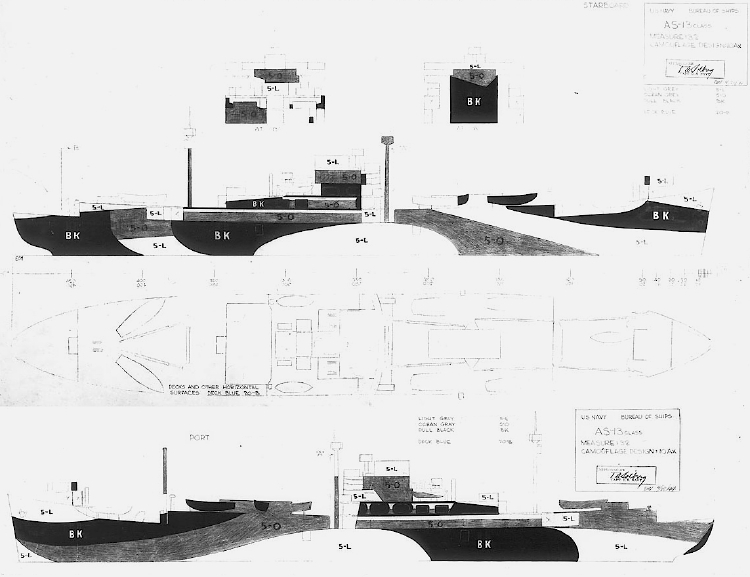

The drawing for Measure 32 Design 10Ax for the Griffin class of submarne tenders using a C3 maritime hull dated April 28, 1944. This drawing specified vertical colors of light gray (5-L), ocean gray (5-O), and dull black (BK) with the horizontal color of deck blue (20-B).

This is only drawing for Design 10Ax that has yet been found.

Original drawing source: NARA 80-G-174764 and 80-G-174765.
