U.S. Navy Ships in WWII Dazzle Camouflage 1944-1945

Auxiliary Ships

View by Design Number

Transports

View by Design Number

for APA-33

Design 4T

for APA-33

Design Number Silhouette Ships Wearing Design
for APA-33
Measure 32
Burleigh (APA-95)Dauphin (APA-97)
Duchess (APA-98)Dade (APA-99)
Riverside (APA-102)Queens (APA-103)
Westmoreland (APA-104)
Drawing

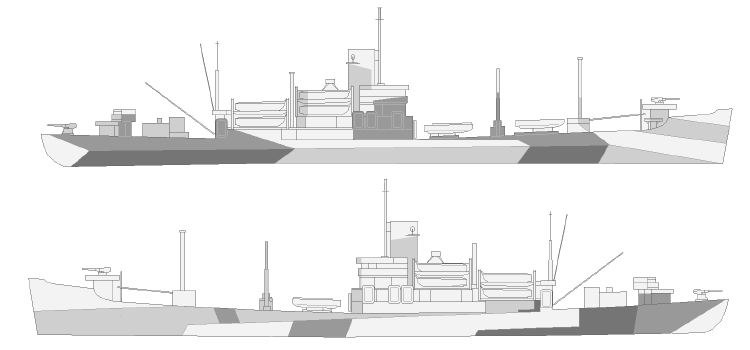

This is what the drawing for Measure 32 Design 4T for the Bayfield class of attack transports using a (C3-S-A2) maritime hull may have looked like. This was probably dated July 1944. This design used four vertical colors for Measure 32: dull black (BK), navy blue, ocean gray (5-O) and light gray (5-L) with deck blue (20-B) for the horizontal color.

The first Design 4T drawing was for USS Harris (APA-2) on January 11, 1944, as above. Design 4T was then drawn for the Harry Lee class of attack transports on March 9, 1944. Then 4T was drawn for USS Boreas (AF-8) on April 5, 1944, and on April 7 for USS President Polk (AP-103) a (C3A-P&C) maritime hull. On July 5, 1944, Design 4T was issued for the Sumter class of attack transports using a (C2-S-E1) maritime hull and again on August 1, 1944, for the Haskell class attack transports with (VC2-S-AP5) maritime hulls.

Original drawing source: NARA 80-G-000000.
