Seaplane Tenders |
View by Design Number |
|
|||||
Design Number | Silhouette | Ships Wearing Design | |||
---|---|---|---|---|---|
for AV-4 |
Measure 32
|

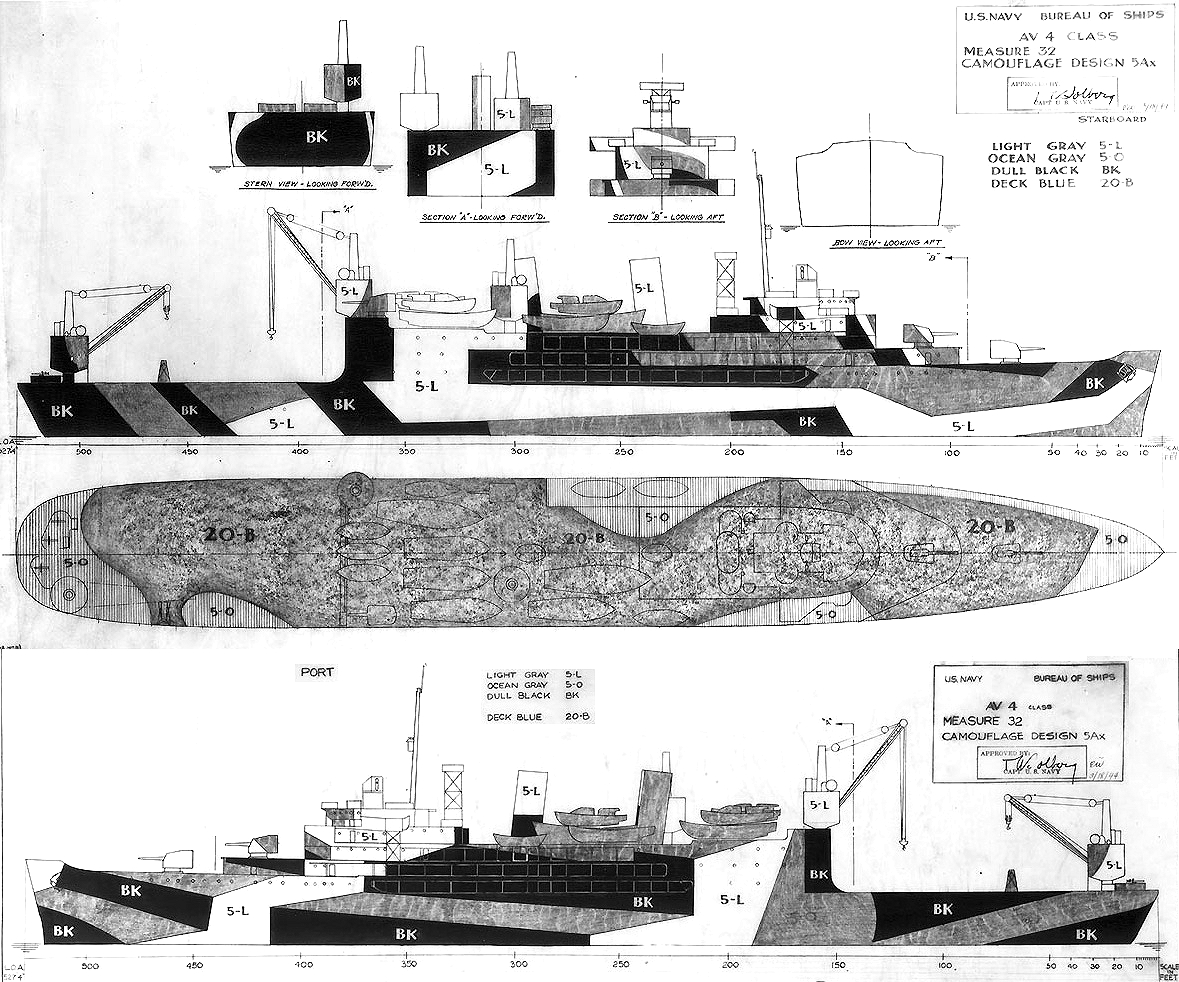

The drawing for Design 5Ax for Curtiss class seaplane tenders dated March 18, 1944. The Measure 32 vertical colors were dull black (BK), ocean gray (5-O) and light gray (5-L) and the deck was a pattern of deck blue (20-B) and ocean gray.
This is the only version of Design 5Ax that has been found.
Original drawing source: NARA 80-G-172521 and 80-G-172522.
