U.S. Navy Ships in WWII Dazzle Camouflage 1944-1945

Auxiliary Ships

View by Design Number

Seaplane Tenders

View by Design Number

for AVP-10

Design 2Ax

for AVP-10

Design Number Silhouette Ships Wearing Design
for AVP-10
Measure 32
Wachapreague (AGP-8)Willoughby (AGP-9)
Casco (AVP-12)Mackinac (AVP-13)
Unimak (AVP-31)Yakutat (AVP-32)
Barataria (AVP-33)Bering Strait (AVP-34)
Castle Rock (AVP-35)Onslow (AVP-48)
Orca (AVP-49)San Carlos (AVP-51)
Shelikof (AVP-52)Suisun (AVP-53)
Drawing

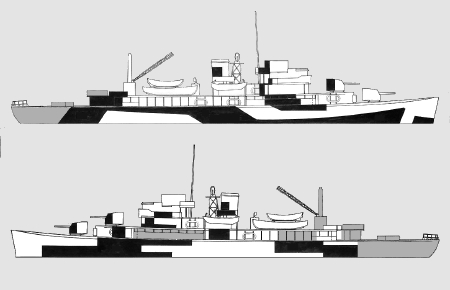

The design drawings for Design 2Ax for the Barnegat class small seaplane tenders drawn on December 9, 1943. The Measure 32 colors shown are dull black (BK), ocean gray (5-O) and light gray (5-L). The deck color is all deck blue (20-B). Note, there is a bow view and stern view shown.

There has been no other Design 2Ax drawing found.

Original drawing source: NARA 80-G-162028 and 80-G-162029.
