U.S. Navy Ships in WWII Dazzle Camouflage 1944-1945

Destroyers

View by Design Number

Allen M. Sumner & Gearing Classes

View by Design Number

for DD-692

Design 28D

for DD-692

Design Number Silhouette Ships Wearing Design
for DD-692
Measure 33a
Gearing (DD-710)Frank Knox (DD-742)
Southerland (DD-743)Chevalier (DD-805)
Drawing

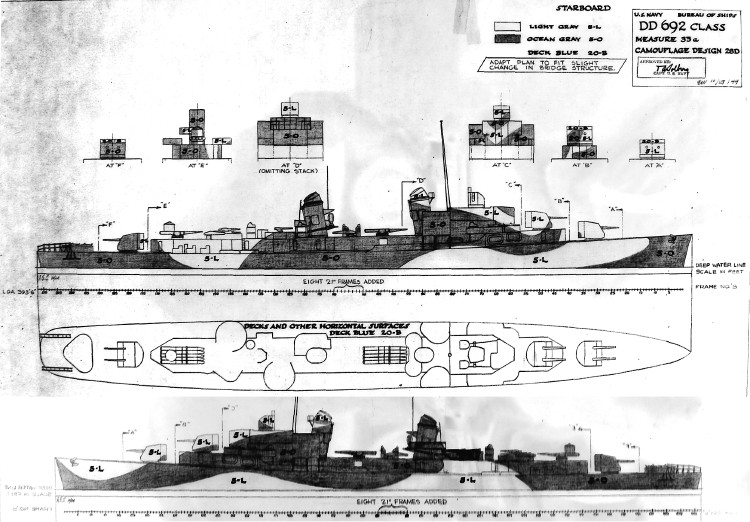

Drawing 33a/28D labeled for the Allen M. Sumner class destroyers dated October 27, 1944. The vertical colors are ocean gray (5-O) and light gray (5-L). The ship profile that was used for this drawing was really of the Gearing DD-710 class. The difference was the added length between the two stacks, which can be seen on the scales for each side view.

Original drawing source: NARA 80-G-100070 and 80-G-100071.
